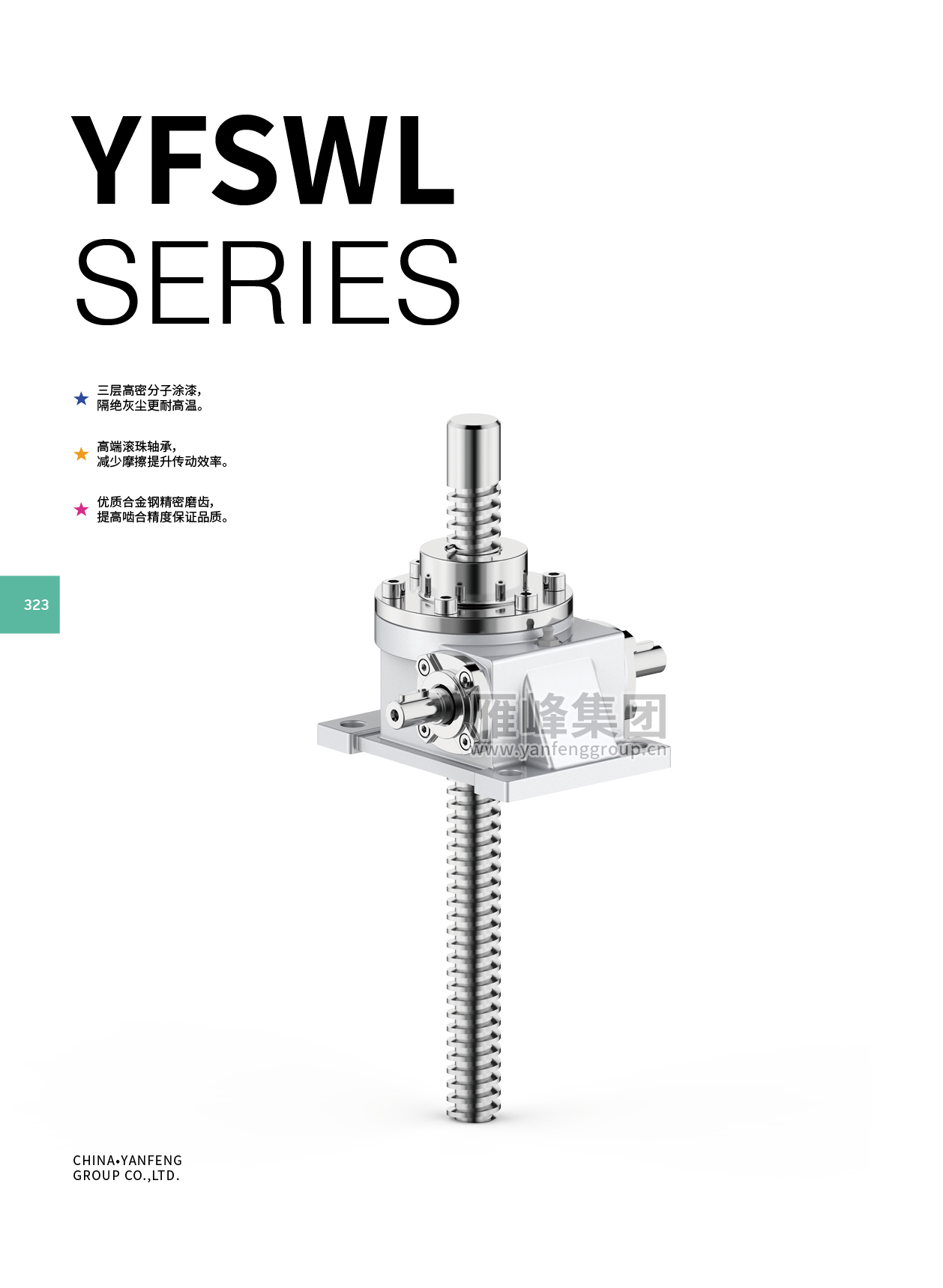

SWL series worm-bolt lifter

Name: SWL series worm-bolt lifter
SKU: WP9F4C4CA3

Shunchang Packaging Machinery

SKU: WP9F4C4CA3

Self-locking worm gear screw jack for lifting, lowering, pushing and positioning loads from 1 to 100 tonnes.

Two structural types: travelling screw (type 1) or rotating screw with travelling nut (type 2), upward or downward
Three-layer high-density polymer paint finish: dust-proof and heat resistant
Ratio: P (normal speed) / M (slow speed)
Assembly forms: A1 (screw travels upward), B1 (screw travels downward), A2 (rotating screw, nut moves upward), B2 (rotating screw, nut moves downward); drawn as 1A, 1B, 2A, 2B
Accessories: Z (with protective tube), F (anti-rotating type)
Screw-end coupling: I flat head, II roller head, III fork/bolt head, IV keyhole head
Max lifting force: 10 kN (YFSWL1) – 1000 kN (YFSWL100); 10, 25, 50, 100, 150, 200, 250, 350, 500, 750, 1000 kN
Max tension load: 10 – 1000 kN (same as lifting force per size)
Screw thread: Tr22x5, Tr30x8, Tr42x8, Tr58x12, Tr58x12, Tr65x12, Tr90x16, Tr110x16, Tr120x16, Tr130x18, Tr150x24
Screw outer diameter d3: 16.5 – 124 mm
Screw pitch: 5 – 24 mm
Worm wheel ratio: P (normal): 3/11 to 3/46 (approx. 1/8 – 1/15); M (slow): 1/22 – 1/40
Travel per worm revolution: P: 1.0 – 1.565 mm; M: 0.227 – 0.55 mm
Worm torque at full load: P: 6.2 – 2040.9 N·m; M: 2.9 – 1278.3 N·m
Efficiency: P: 13 – 23 %; M: 8 – 13 %
No-load torque: 0.02 – 39.2 N·m
Weight (excluding travel): 5.5 – 748 kg
Max travel: 300 mm (YFSWL1) – 2000 mm (YFSWL35 and larger); can be increased for tension loads
Max input speed: 1500 r/min
Duty cycle: max 20% ED (duty calculated over a 30 min cycle)
Lubrication: calcium-based grease ZGN-1 or ZGN-2, -20 to 100 C
Working conditions: indoor, no rain; normal factory dust; ambient -15 to 40 C; relative humidity below 85%
Service factor f1: 1.0–1.3 (no shock, small inertia), 1.3–1.5 (moderate shock), 1.5–3.0 (heavy shock)
Linkage factor fd: 1 jack 1.0; 2 jacks 0.95; 3 jacks 0.9; 4 jacks 0.85; 5–8 jacks 0.8
Power formula: P = T x n / 9550 (T in N·m, n in r/min)
Model designation example: YFSWL 2.5 M 1 A 500 Z I

Overview

The YFSWL series is a worm gear screw jack (worm screw rod lifter): a worm and worm-wheel pair driving a trapezoidal (Tr) threaded screw to raise and lower a load. The catalogue describes it as compact in structure, small and light, flexible, reliable, long-lived and easy to install, and it is self-locking when stopped so the load is held without a brake. Eleven sizes are offered, YFSWL1 through YFSWL100, with maximum lifting force from 10 kN to 1000 kN (1 t to 100 t) and screw threads from Tr22x5 to Tr150x24. Construction, as shown in the 20-part exploded view, is a cast housing with cover, a bronze-type worm wheel on rolling bearings driven by a worm shaft with keyed input ends, lip oil seals, end covers and a grease nipple; the screw passes through the worm wheel. Two structural types are available: type 1 where the screw travels axially without rotating, and type 2 where the screw rotates and a travelling nut moves along it, each in an upward (A) or downward (B) arrangement. Screw-end couplings can be a flat head (I), roller head (II), fork/clevis head (III) or keyhole head (IV), and a protective tube (Z) or anti-rotation device (F) can be specified. Two worm ratios are offered per size: P (normal speed) and M (slow speed), for example 1/8 and 1/25 on YFSWL2.5. The cover highlights a three-layer high-density polymer paint finish that keeps out dust and withstands high temperature, high-grade ball bearings that reduce friction, and premium alloy-steel precision-ground gearing. Model designation follows the pattern YFSWL 2.5 M 1 A 500 Z I: series, size, ratio, structural type, assembly form, travel in mm, accessories and coupling type. Maximum travel ranges from 300 mm on YFSWL1 to 2000 mm on the largest sizes (longer travel available for tension loads). Lubrication is calcium-based grease ZGN-1 or ZGN-2 (-20 to 100 C); the working environment should be indoors, free of rain, at -15 to 40 C and below 85% relative humidity, with a dust shield or protective bellows in dusty or outdoor locations. Typical applications are lifting platforms, all kinds of elevators and moving devices, and switch or valve actuation; several jacks are commonly linked in parallel from one drive through T-series bevel gearboxes. The selection pages give service factors by load type, a linkage factor for 1 to 8 jacks driven together, duty-cycle limits (max 20% ED, input speed max 1500 r/min, starting torque up to 200% of running torque), and formulas for required input power, screw buckling (critical load) and critical rotation speed.

Features

Worm gear plus trapezoidal screw; self-locking holds the load when stopped Compact, light and portable, flexible and reliable, long service life, easy to install Eleven sizes with maximum lifting force 10 kN to 1000 kN Two structural types: travelling screw (type 1) or rotating screw with travelling nut (type 2), upward or downward Normal (P) and slow (M) worm ratios for each size Four screw-end couplings, optional protective tube and anti-rotation device Three-layer high-density polymer paint finish: dust-proof and heat resistant High-grade ball bearings and premium alloy-steel precision-ground gearing

Variants & mounting

YFSWL1 (SWL1.0) YFSWL2.5 YFSWL5 YFSWL10 YFSWL15 YFSWL20 YFSWL25 YFSWL35 YFSWL50 YFSWL75 YFSWL100 Ratio: P (normal speed) / M (slow speed) Structural type 1 (screw travels axially, does not rotate) / type 2 (screw rotates, nut travels) Assembly forms: A1 (screw travels upward), B1 (screw travels downward), A2 (rotating screw, nut moves upward), B2 (rotating screw, nut moves downward); drawn as 1A, 1B, 2A, 2B Accessories: Z (with protective tube), F (anti-rotating type) Screw-end coupling: I flat head, II roller head, III fork/bolt head, IV keyhole head
