S series helical gear/worm reducer
Shunchang Packaging Machinery
SKU: WPDD0D1D74
Right-angle helical-worm gear reducers and geared motors for compact, quiet, high-ratio drives.
- Frame sizes
- 37, 47, 57, 67, 77, 87, 97
- Input power
- 0.12–22 kW (S37: 0.12–1.1; S47: 0.12–1.5; S57: 0.18–3; S67: 0.25–5.5; S77: 0.75–7.5; S87: 0.75–15; S97: 1.5–22 kW)
- Ratio
- approx. 6.8–290 (S37: 6.8–157.43; S47: 7.28–201; S57: 7.56–217.41; S67: 8.06–256.47; larger sizes up to approx. 288)
- Permissible output torque
- 93–3,990 N·m (S37: 93; S47: 170; S57: 245; S67: 520; S77: 1,170; S87: 2,130; S97: 3,990)
- Mounting positions
- M1, M2, M3, M4, M5, M6
- Output shaft side
- A, B or A+B (double-ended)
- Terminal box position
- 0°, 90°, 180°, 270°
Overview

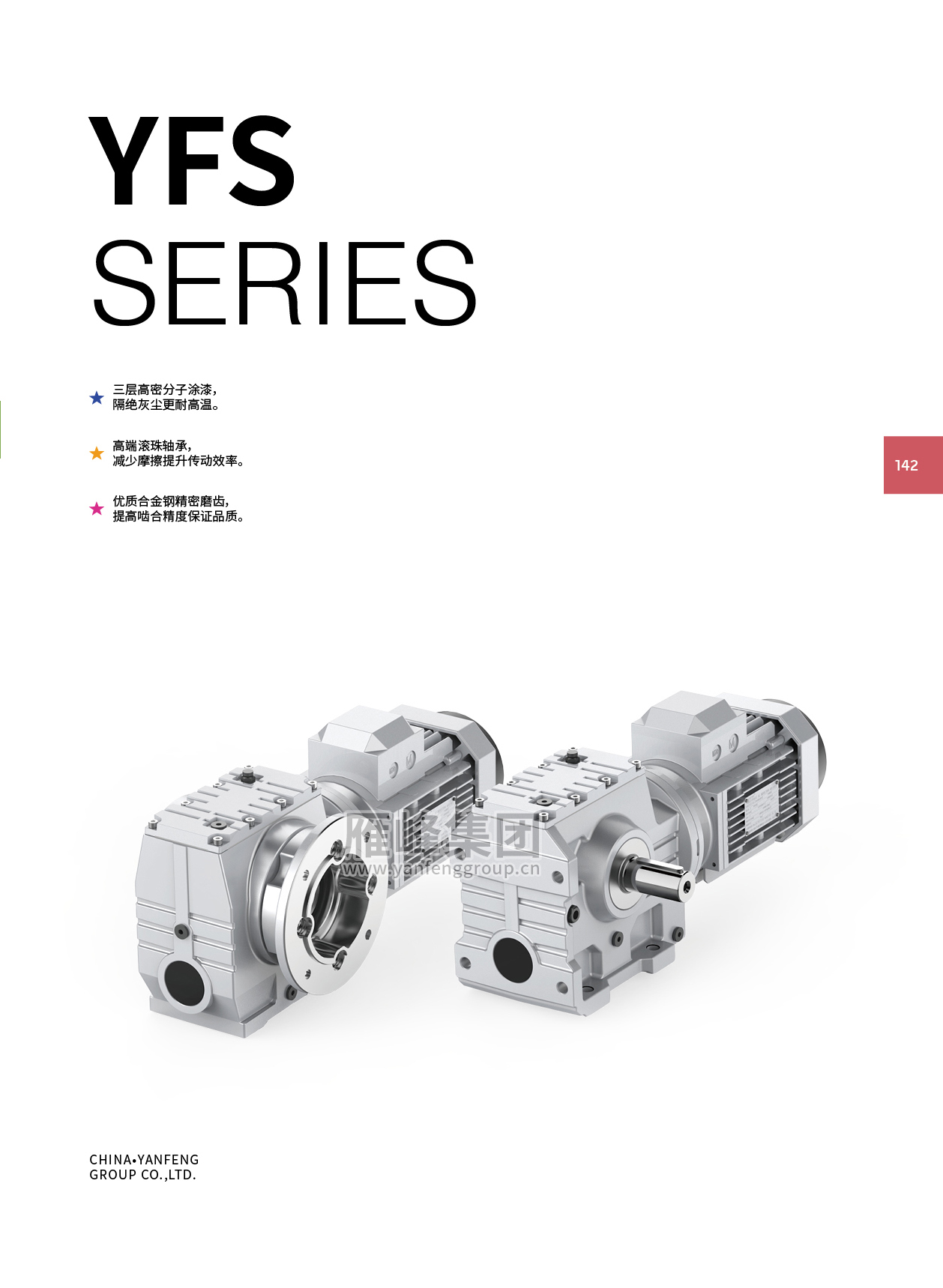

The YFS series is Yanfeng Group's right-angle helical-worm gear reducer. A helical first stage drives a worm and worm-wheel output stage, giving a compact right-angle unit with a wide ratio range. It is available as a bare gear unit or as a geared motor with a directly flanged AC motor, in seven frame sizes from S37 to S97, covering input powers from 0.12 kW to 22 kW and permissible output torques from 93 N·m to 3,990 N·m, with ratios from roughly 6.8 up to about 290. The exploded view in the catalogue shows a cast housing with bolted cover and sealing gasket, a breather cap, an oil sight glass and drain plug, a worm and worm wheel, a helical gear and pinion pair on the input side, an output shaft carried on rolling bearings, shaft sleeves, circlips, and flat and lip (skeleton) oil seals. The cover page highlights three construction points: a three-layer high-density polymer paint finish that seals out dust and tolerates high temperature, high-grade ball bearings that reduce friction and raise transmission efficiency, and precision-ground gears in high-quality alloy steel that improve meshing accuracy. The series is offered foot-mounted (YFS), flange-mounted (YFSF), with hollow output shaft (YFSA) and with hollow shaft plus flange (YFSAF); the type-designation key also lists B14 flange (AZ), foot-plus-hollow-shaft (A...B) and foot-plus-flange (S...F) combinations. Units are ordered by the catalogue type designation (enterprise code YF, series letter, mounting code, frame size, motor power and poles, ratio i or output speed, mounting position M1–M6, output-shaft side A/B/A+B, terminal-box orientation) and are available in six mounting positions M1 to M6, with breather, oil-sight-glass and drain-plug positions defined for each. The selection guide states that the units are rated for steady load, a stated daily operating time and a limited number of starts; for other duty the required torque is multiplied by driven-machine, prime-mover and starting factors (f1, f2, f3) and compared with the permissible torque. Special-specification products can be ordered and Yanfeng offers exclusive design service.
Features
Three-layer high-density polymer paint coating seals out dust and withstands high temperatures High-grade ball bearings reduce friction and improve transmission efficiency Precision-ground gears in high-quality alloy steel for better meshing accuracy and consistent quality Helical input stage plus worm-gear output stage in a compact right-angle housing Seven frame sizes (S37–S97) covering 0.12–22 kW and up to 3,990 N·m Wide ratio range, roughly 6.8 to about 290, in a single unit Foot, flange, hollow-shaft and hollow-shaft-with-flange mounting options Six mounting positions (M1–M6) with breather, oil-sight-glass and drain-plug positions defined for each
Variants & mounting
YFS (foot-mounted) YFSF (flange-mounted, B5 flange) YFSA (hollow output shaft) YFSAF (hollow output shaft with B5 flange) YFSAZ (hollow output shaft with B14 flange, per type-designation key) YFSA...B (foot-mounted with hollow shaft, per type-designation key) YFS...F (foot- and flange-mounted, per type-designation key)
