P series planetary speed reducer
Shunchang Packaging Machinery
SKU: WPD0B649A1
Involute planetary gear units with power splitting for very high torque in a compact, lightweight package.
- Add-on pieces
- 99 none, 96 gear housing base, 70 motor bell housing (input), 71 motor bracket, 72 motor bracket, 73 motor swing base, 74 bell housing (output), 75/76 torque reaction arm (one side / both sides), 77 torsion shaft support
- Output speed
- 0.19-60 r/min
- Output torque
- up to 2,600,000 N·m
- Motor power
- 0.4-1293 kW
- Mounted form
- foot-mounted and flange-mounted
- Output shaft design
- solid shaft, solid shaft with involute splines, hollow shaft with involute splines, hollow shaft with shrink disk
- Frame sizes
- 9-36
- Nominal ratios YFP2N (Table, sizes 9-36)
- 25, 28, 31.5, 35.5, 40 at input speeds 750/1000/1500 r/min
- Nominal power ratings YFP2N (page 170)
- approx. 13 kW (size 9, ratio 40, 750 r/min) to approx. 12,934 kW (size 36, ratio 31.5, 1500 r/min) as printed
- Thermal capacity PG1 (YFP2N, horizontal)
- 21-437 kW in small confined spaces; 29-619 kW in large halls; 39-838 kW in the open
- Type designation example
- YFP2 S AZ -12 -80 -B512 -96 -CW
- Selection example result
- YFP3N-AZ-17-225-B500-96 for a 75 kW, 1500 r/min belt conveyor drive at ratio 227
Overview

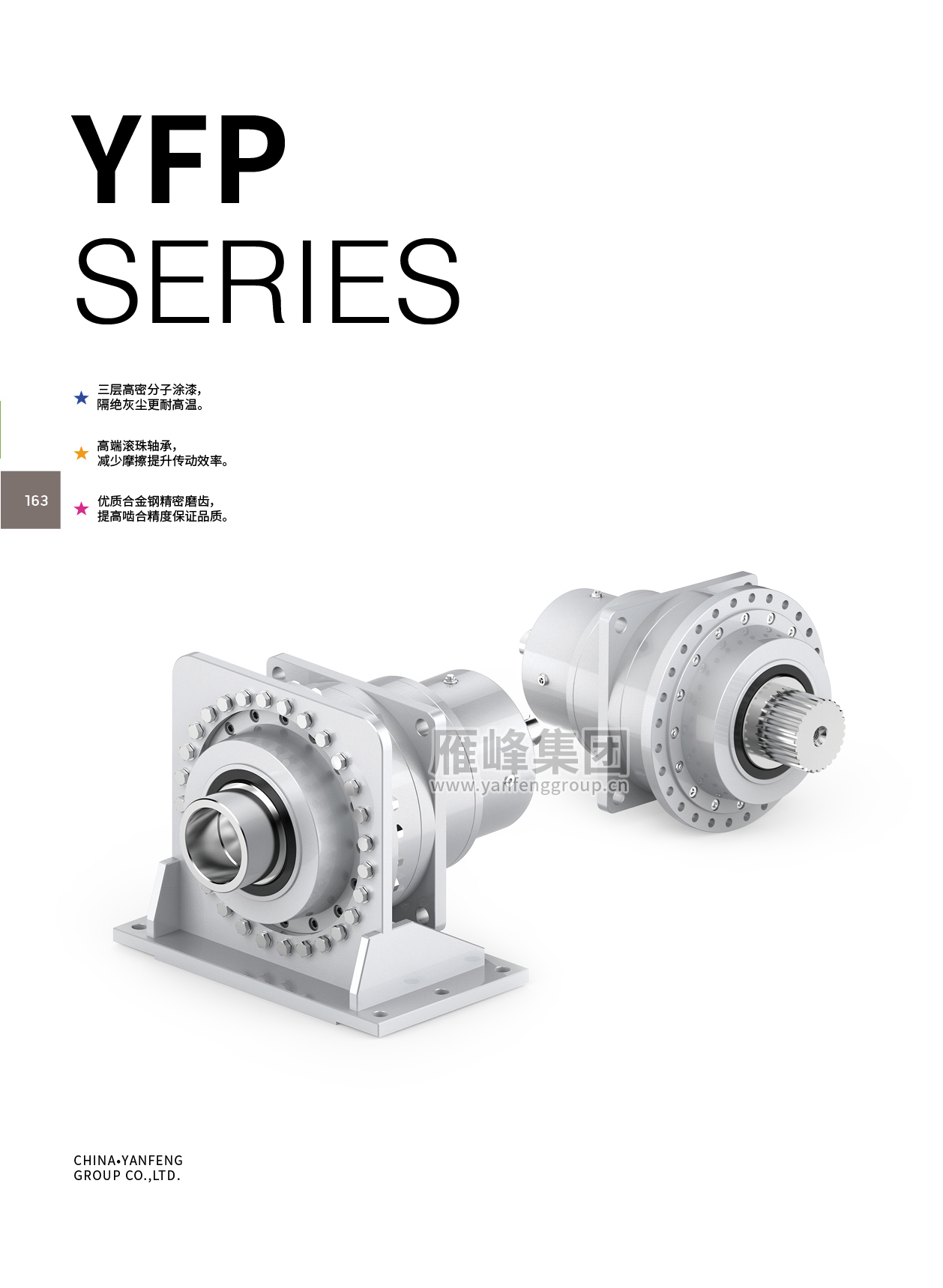

The YFP series is Yanfeng Group's planetary gear reducer. It uses involute planetary gear transmission that makes rational use of internal and external meshing and of power splitting, so the unit is light in weight and small in volume while offering a wide transmission-ratio range, high power, smooth running, low noise and good adaptability. The exploded view shows a bolted housing with ring gears, planet carriers with planet wheels on pin shafts, sun wheels, an output planet carrier, connecting plate, input housing and input shaft, rolling bearings, breather cap, oil plug, covers and lip-type oil seals. The cover page highlights the same three construction features used across the Yanfeng range: a three-layer high-density polymer paint finish that seals out dust and resists heat, premium ball bearings that reduce friction and improve efficiency, and precision-ground gears in high-quality alloy steel for meshing accuracy. Units are built with two or three planetary stages (YFP2, YFP3) in a standard in-line structure or with an added bevel gear stage, helical gear stage or bevel-helical stage for right-angle or offset input. Output shafts are offered as hollow shaft with shrink disk, hollow shaft with involute splines, solid shaft with parallel key and solid shaft with involute splines, in sizes 9 to 36, foot-mounted or flange-mounted, horizontal or vertical. Output speeds range from 0.19 to 60 r/min, output torque up to 2,600,000 N·m and motor power from 0.4 to 1293 kW. Add-on pieces such as gear housing base, motor bell housing, motor bracket, swing base, torque reaction arms and a torque shaft support are available. The catalogue states the series is widely used in metallurgy, mining, hoisting and transport, electrical power, energy resources, construction and building materials, light industry and traffic industry. Units are supplied with dip lubrication; forced lubrication is provided on request, and a motor-driven oil pump is required for larger vertical mounting arrangements. The selection guide covers ratio calculation, nominal power with service factors, peak torque, radial force, actual ratio and thermal balance, with a worked example for a belt conveyor drive.
Features
Involute planetary gearing with internal/external meshing and power splitting Light weight and small volume for the torque delivered Wide transmission-ratio range; output torque up to 2,600,000 N·m High power (0.4-1293 kW motors), smooth rotation and low noise Two- or three-stage planetary units with optional bevel, helical or bevel-helical input stage Solid or hollow output shaft, with parallel key, involute splines or shrink disk Foot-mounted or flange-mounted, horizontal or vertical positions, sizes 9-36 Three-layer polymer paint, premium ball bearings and precision-ground alloy-steel gears
Variants & mounting
YFP2 (two planetary stages) YFP3 (three planetary stages) Structure N (standard), L (with bevel gear stage), S (with helical gear stage), K (with bevel-helical gear stage) Output shaft AZ (hollow shaft with shrink disk), AH (hollow shaft with involute splines), BS (solid shaft with parallel key), BH (solid shaft with involute splines) Mounting positions B500-B556 (horizontal), V100-V130 (vertical, output shaft downward), V300-V330 (vertical, output shaft upward) Add-on pieces: 99 none, 96 gear housing base, 70 motor bell housing (input), 71 motor bracket, 72 motor bracket, 73 motor swing base, 74 bell housing (output), 75/76 torque reaction arm (one side / both sides), 77 torsion shaft support Sizes 9-36
